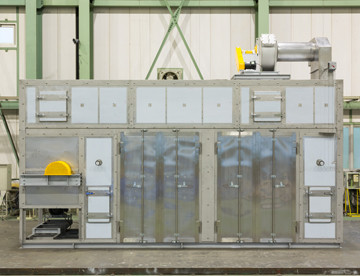

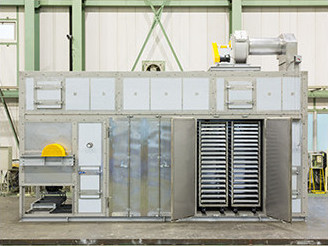

The box dryer is a dryer with a freely selectable airflow method, which is suitable for a wide range of applications.

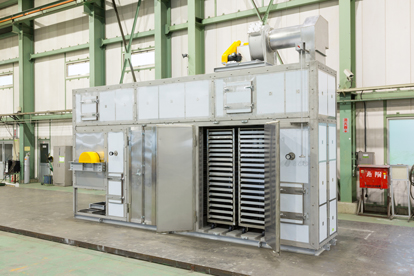

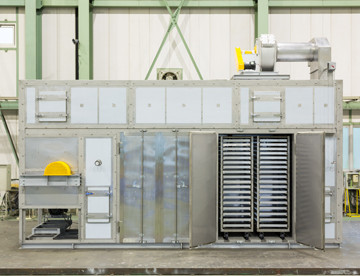

In the box dryer, formed materials or materials loaded into a container (tray) are inserted into a fixed shelf or trolley shelf in the drying chamber, where they are dried by hot air.
Various airflow methods are available, including horizontal airflow (lateral one-way airflow or alternating airflow) and through flow (vertical one-way airflow or alternating airflow).
The number of drying chambers can be selected, with single chamber types and multi chamber types (with reheating heater installed) available. This enables use for large volume processing.
The following models are available, which differ according to how the hot air is applied to the materials.
In the box dryer, formed materials or materials loaded into a container (tray) are inserted into a fixed shelf or trolley shelf in the drying chamber, where they are dried by hot air.
Various airflow methods are available, including horizontal airflow (lateral one-way airflow or alternating airflow) and through flow (vertical one-way airflow or alternating airflow).
The number of drying chambers can be selected, with single chamber types and multi chamber types (with reheating heater installed) available. This enables use for large volume processing.
The following models are available, which differ according to how the hot air is applied to the materials.
- 1. Supports a wide range of materials.
- 2. Easy to clean, inspect and operate, etc.
- 3. Various airflow methods can be used. (Vertical, lateral, through flow, parallel flow)
- 4. Easy to control temperature, humidity and airflow.
- 5. Suitable for materials requiring a relatively long time for drying.
- 1. Various industrial materials with low volume but many different types, such as food, pharmaceuticals, agricultural produce, resins and chemicals.
- 2. Granular, clumped, sludge or board shaped materials.
Box dryer models can be selected according to the processing volume and processing methods.
The standard box dryer uses a drying method where hot air is applied to the materials with an equilibrium flow.
Simple structure, and easy to inspect, clean, handle and operate.
The high velocity box dryer is a model where hot air is applied to the materials with a high velocity parallel airflow, enabling highly efficient, balanced drying in a short period of time.
1. Balanced, high velocity hot air is applied to the materials using a unique alignment machine, which enables drying times to be reduced.
2. Simple structure, and easy to inspect, clean, handle and operate.
2. Simple structure, and easy to inspect, clean, handle and operate.

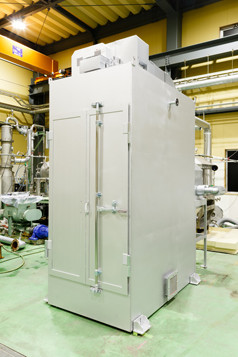

The through flow box dryer is a model where hot air is blown onto the materials with a through-flow method, enabling balanced drying in a short period of time. This is particularly suitable for granulated or formed materials that have good air permeability.
1. The materials are dried with forced through-flow, which increases the contact area between the hot air and the materials, and enables drying in a short period of time.
2. The blowing side and suction side are in the same direction, enabling balanced drying.
2. The blowing side and suction side are in the same direction, enabling balanced drying.

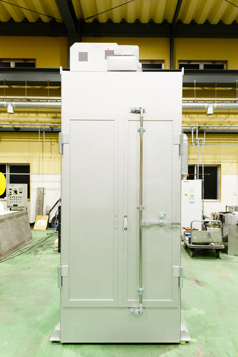

The alternate airflow box dryer is a model where the hot airflow is changed from vertical to lateral for certain time periods in order to reduce drying unevenness and achieve balanced drying.
Lateral (vertical) drying unevenness is reduced to achieve balanced drying.
■Used for applications such as the following.
Pods, pet food, glass fiber, catalysts, pigments, Brake pads, rice condiments, printed circuit boards, boiled fish, brake lining Food, pharmaceuticals, agricultural produce, resins, chemical products; various industrial materials with low volume but many different types; granular, clumped, sludge or board shaped materials
