Wedge Style Dryer

Wedge Style Dryer

Wedge Style Dryer.Conduction heat transfer type dryer

The wedge style dryer is a conduction heat transfer type of dryer. A heating medium such as steam, hot water or oil passes inside wedge-shaped rotary blades and also through the jacket of the dryer main unit.
The wedge style dryer efficiently dries the processed materials up to the specified moisture level via heat transfer from the rotary blades and jacket.
The moisture evaporated from the processed materials is discharged together with the carrier gas.
This conduction method produces minimal exhaust gas, which enables a smaller exhaust gas processor to be used. This results in great advantages such as a smaller installation area and lower running costs.

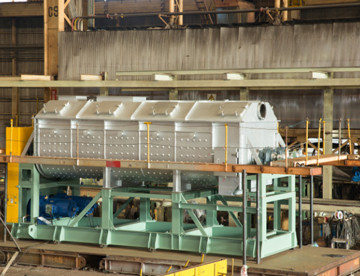

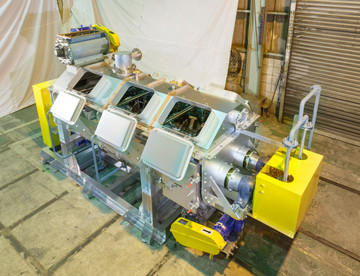

Wedge Style Dryer appearance

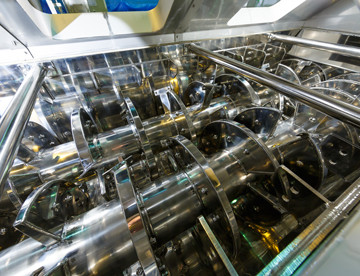

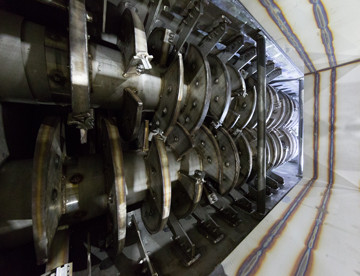

Wedge Style Dryer Interior view

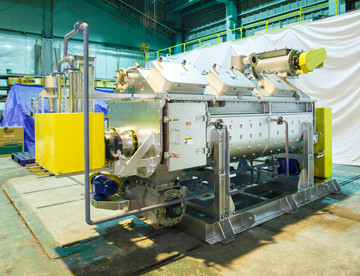

Wedge Style Dryer appearance
Wedge Style Dryer Interior view

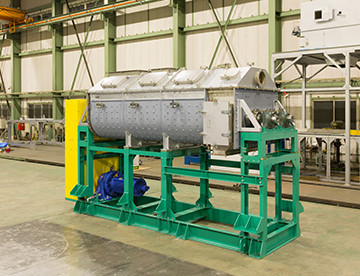

Wedge Style Dryer appearance
Wedge Style Dryer Interior view

Features

  • 1. Good thermal efficiency and high heat transfer coefficient.
  • 2. Large heat transfer surface area enables the machine size to be made smaller.
  • 3. Low airflow volume minimizes odorous gas and dusting.
  • 4. Continuous processing is possible.
  • 5. High agitation efficiency with low adherence.

Airflow

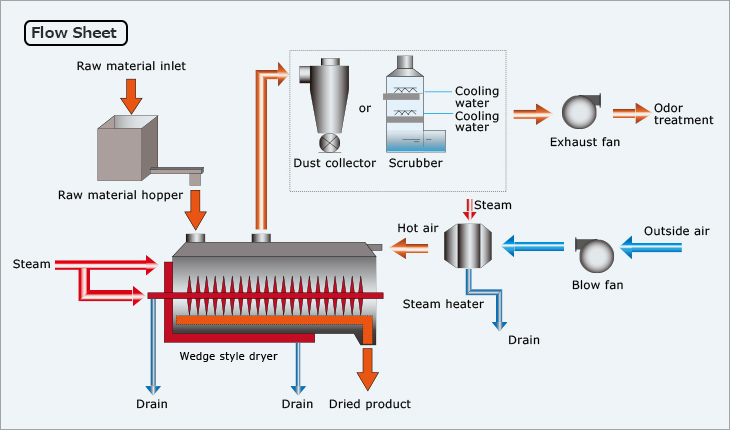

Flow Sheet.Raw material inlet.Raw material hopper.Dust collector.Cooling water.Cooling water.Scrubber.Exhaust fan.Odor treatment.Steam.Hot air.Outside air.Blow fan.Steam heater.Drain.Dried product.Drain.Wedge style dryer.Drain.Steam

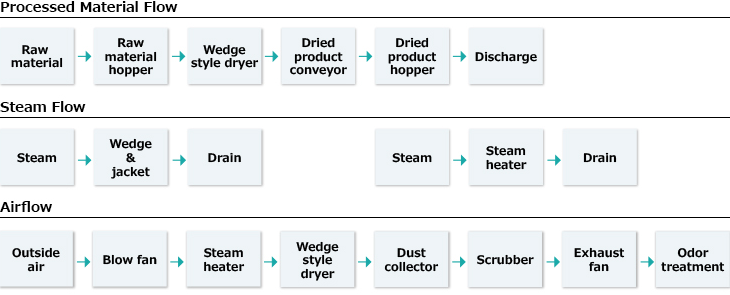

Processed Material Flow.Raw material.Raw material hopper.Wedge style dryer.Dried product conveyor.Dried product hopper.Discharge./Steam Flow.Steam.Wedge & jacket.Drain.Steam.Steam heater.Drain./Airflow.Outside air.Blow fan.Steam heater.Wedge style dryer.Dust collector.Scrubber.Exhaust fan.Odor treatment

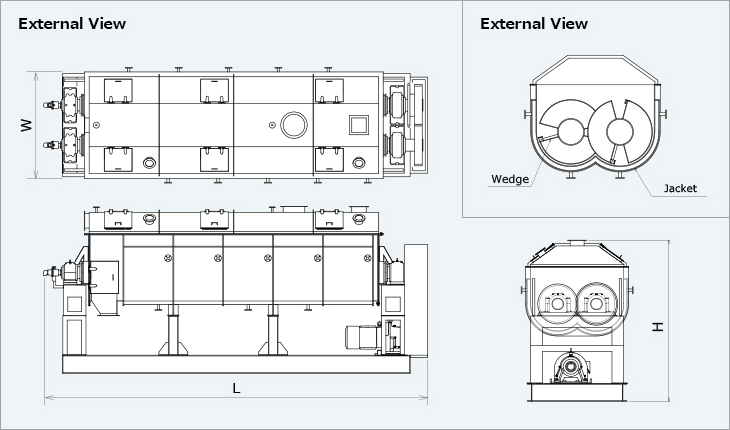

External View/Cross Section View

External View.Wedge.Jacket

Models/Specifications

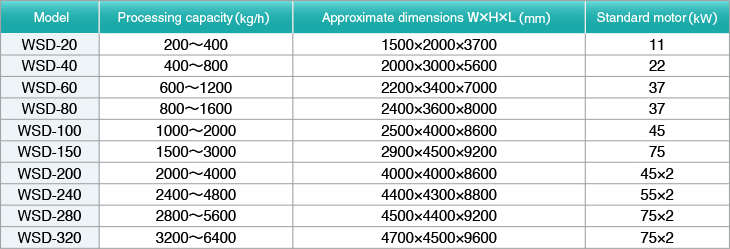

Model.Processing capacity (kg/f).Approximate dimensions W×H×L (mm).Standard motor (kW).

Examples of Past Use

■Utilization of excess steam
■Drying and volume reduction of a wide range of sludges
■Sterilization

Examples of Possible Future Use

■Drying of biomass such as wooden chips and residue from coffee production
■CO2 reduction by utilizing excess steam
■Simultaneous pulverizing and drying
