Vacuum Dryer

Vacuum Dryer

Vacuum Dryer.Vacuum processing delivers high thermal efficiency, and the sealed structure minimizes dust and odors for a clean working environment.

The highly efficient vacuum dryer dries materials with a high moisture content, such as sludge, and materials containing solvents effectively under vacuum conditions.
The vacuum dryer performs processing in a vacuum to deliver high thermal efficiency and the sealed structure minimizes dust and odors for a clean working environment.
Also, the high material holding capacity of the vacuum dryer reduces the space required for the machine. Unattended operation is available, which makes maintenance easy.

Features

The features of the vacuum dryer are as follows.

  • 1. Low-temperature processing delivers high thermal efficiency.
  • 2. The sealed structure minimizes dust and odors for a clean working environment.
  • 3. The discharged gas is condensed by the condenser, eliminating the need for a deodorizing device.
  • 4. Easy to adjust the processing time for adaptability to the moisture (solvent) content of the processed materials.
  • 5. The high material holding capacity reduces the space required for the machine.
  • 6. Unattended operation is available, which makes maintenance easy.
  • 7. The granules of the dried materials are granulated to an appropriate size, enabling use in a wide range of fields (agricultural land enrichment, etc.).
  • 8. Low-temperature operations result in a long service life for the equipment.

構成図

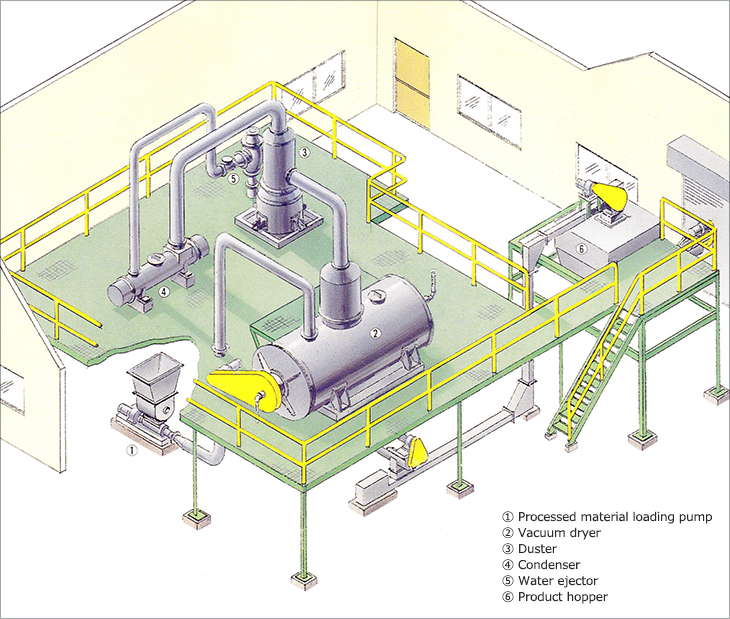

Configuration Diagram. 1. Processed material loading pump. 2. Vacuum dryer. 3. Duster. 4. Condenser. 5. Water ejector. 6. Product hopper

Airflow

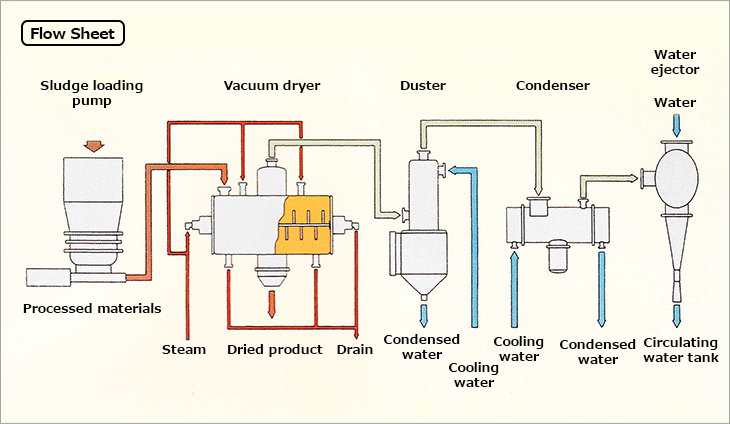

Flow Sheet. Processed materials. Sludge loading pump. Vacuum dryer. Duster. Condenser. Water ejector. Water. Circulating water tank. Condensed water. Cooling water. Cooling water. Condensed water. Drain. Dried product. Steam.

Layout Diagram

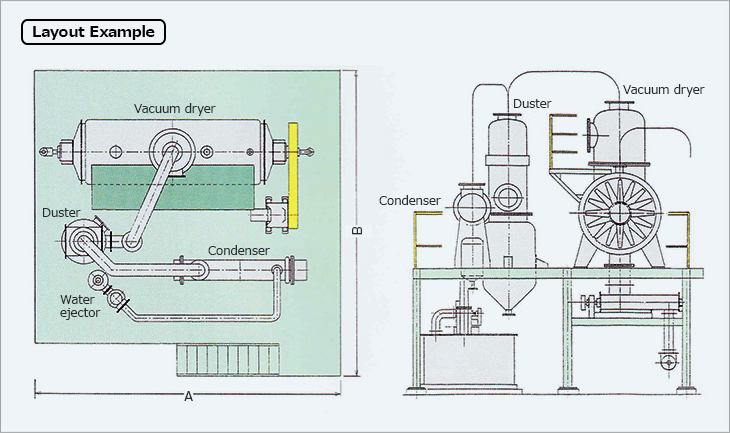

Layout Diagram.Layout Example. Vacuum dryer. Duster. Condenser. Water ejector. Condenser. Duster. Vacuum dryer

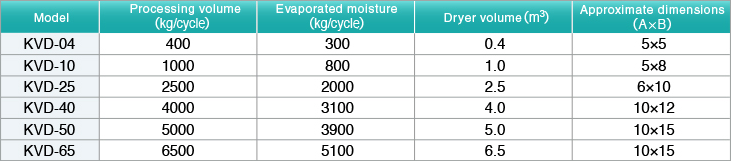

Models/Specifications

Models/Specifications

  • Note 1: The space for devices such as a cooling tower or boiler is excluded from the installation area.
  • Note 2: The evaporated moisture varies according to the moisture in the processed materials.

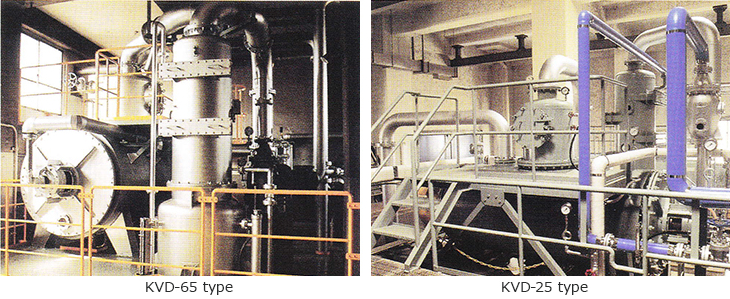

Vacuum Dryer(KVD-65) appearance

Vacuum Dryer(KVD-25) appearance
