Taco Rotary Dryer.Further improves thermal efficiency by using the advantages of both through flow drying and rotary drying.

The taco rotary dryer is a rotary dryer with a unique construction. The main pipe is fixed inside a rotary shell and several hot air blowing pipes are connected to the main pipe.
The taco rotary dryer was developed independently by Yamato Sanko, and its high thermal efficiency and economical performance makes it suitable even for medium to high volume processing.

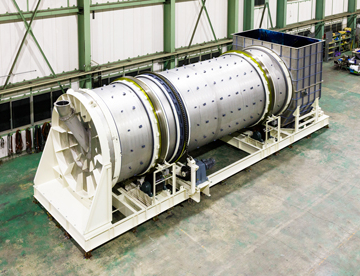

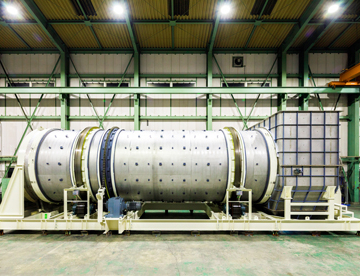

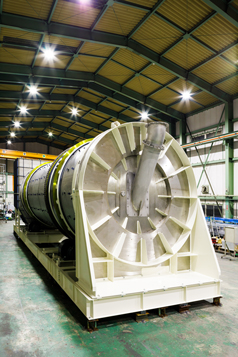

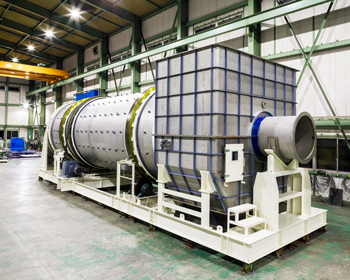

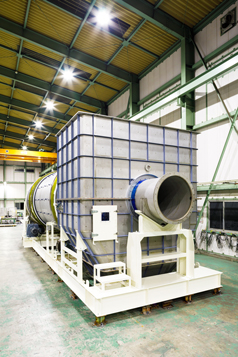

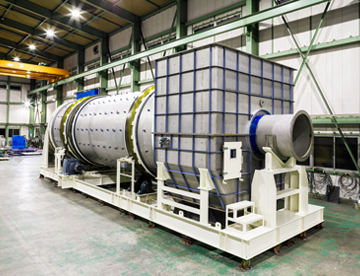

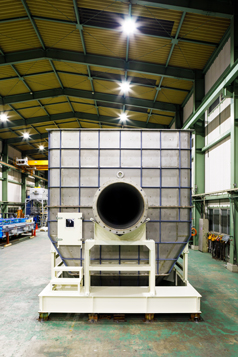

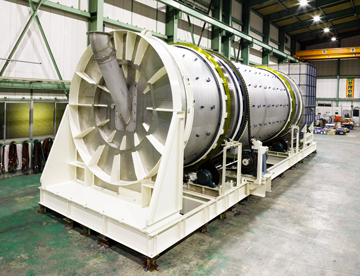

Taco Rotary Dryer appearance
Taco Rotary Dryer appearance
Taco Rotary Dryer appearance
Taco Rotary Dryer appearance

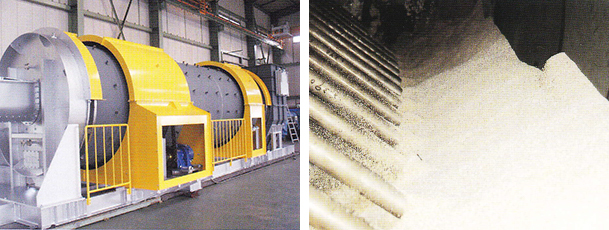

Taco Rotary Dryer appearance/Interior view
Taco Rotary Dryer appearance/Interior view
Taco Rotary Dryer appearance/Interior view

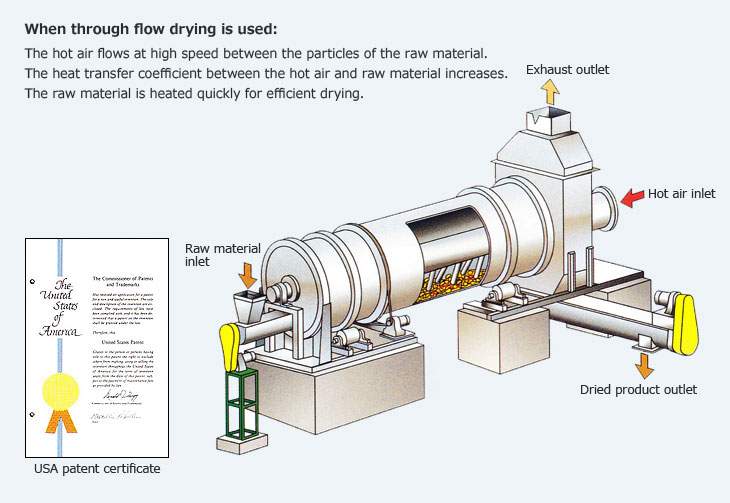

When through flow drying is used:The hot air flows at high speed between the particles of the raw material.The heat transfer coefficient between the hot air and raw material increases.The raw material is heated quickly for efficient drying.USA patent certificate.Raw material inlet.Exhaust outlet.Hot air inlet.Dried product outlet

Click for detailed animation >

Click for cross section animation >

Features

  • 1. Raw materials of any shape can be dried, including granular and clumped materials.
  • 2. Minimal scooping, therefore raw material damage is minimized.
  • 3. Fast drying speed because the air is directly applied to the raw material.
  • 4. Low airflow volume for minimal dusting.
  • 5. High holding capacity for raw materials reduces the area required for the machine.
  • 6. Drying with low temperature gas is also supported, enabling the use of exhaust gas. (From 100°C)

Application Examples

■Waste materials
Food waste, wet ash, sludge, crushed materials such as plastic, etc.
■Chemical products
Synthetic fertilizers, synthetic resins, granular activated carbon, etc.
■Mining, civil engineering and construction materials
Moist ores, coal (powdered coal, pulverized coal), coal preparation sludge, metallic oxides, sand, cohesive soil, seedling earth, plaster, etc.
■Food, agricultural and fishery products
Sugar, granulated sugar, breadcrumbs, shells, beans, rice condiment, fish meal, seafood residue, snacks, crackers, rice crackers, etc.
■Biomass
Wooden chips, construction waste materials, residue from coffee production, etc.

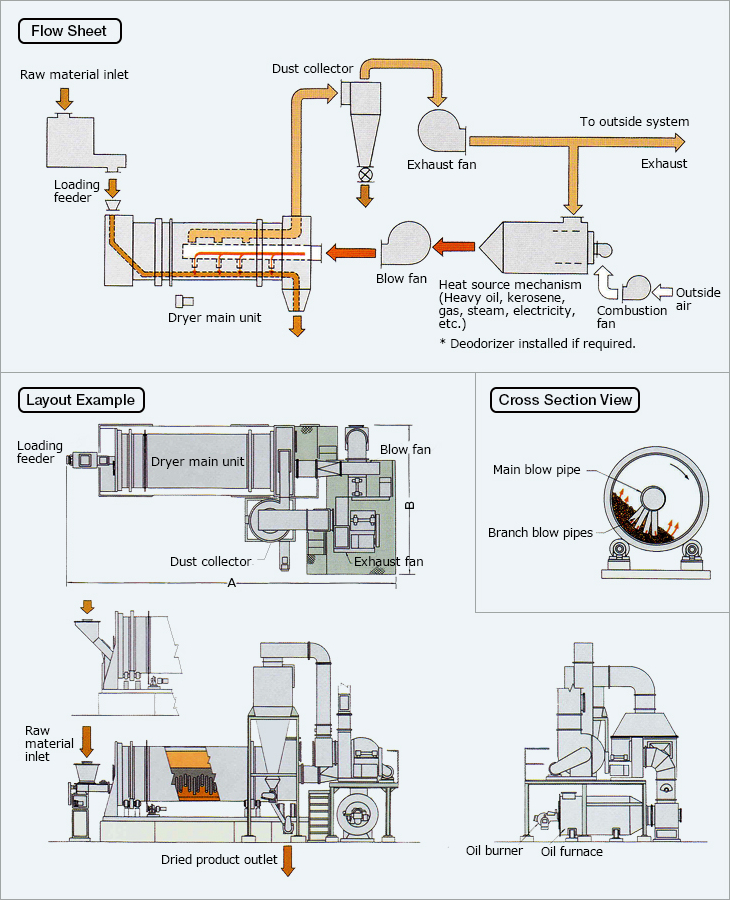

Airflow/Internal structure

Raw material inlet.Dust collector.Exhaust fan.To outside system.Exhaust.Outside air.Combustion fan.Heat source mechanism(Heavy oil, kerosene, gas, steam, electricity, etc.).* Deodorizer installed if required.Blow fan.Dryer main unit.Loading feeder.Layout Example.Loading feeder.Dryer main unit.Blow fan.Exhaust fan.Dust collector.Raw material inlet.Dried product outlet.Oil burner.Oil furnace.Cross Section View.Main blow pipe.Branch blow pipes

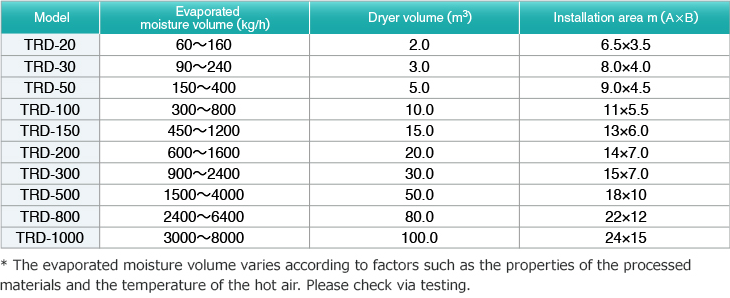

Specifications

Model.Evaporated moisture volume (kg/h).Dryer volume (m3).Installation area m (A × B).* The evaporated moisture volume varies according to factors such as the properties of the processed materials and the temperature of the hot air. Please check via testing.

Test Machine Available

A test machine is available, so please feel free to use.
If an on-site test is required, a test machine can also be borrowed.

Taco Rotary Drye rappearance.Taco Rotary Dryer Interior view.

Examples of Past Use

Used for applications such as the following.

Coral sands, slag, RDF, chemicals, macromolecular polymers
PVC coating, cut aluminum scraps, urban garbage, wooden chips, bark
Incineration ash, wet ash, synthetic rubber

Examples of Possible Future Use

  • ■Suitable for drying with minimal fuel consumption costs when a low temperature heat source is available.
  • ■Drying with low temperature hot air is available, making this dryer optimal for drying processed materials at risk of igniting.

Compatible with use in a wide range of fields. Please contact us for advice.
