Free Angle Dryer

Free Angle Dryer

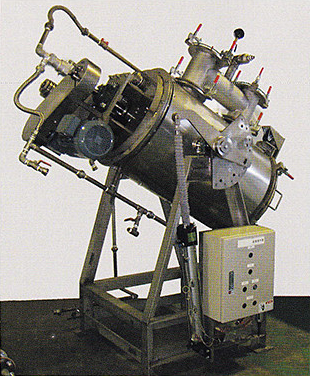

Free Angle Dryer.The FAD (Free Angle Dryer) is a multifunctional, multipurpose conduction heat transfer type of dryer. The angle of the dryer body can be freely changed according to conditions such as the properties and characteristics of the processed materials.

The exterior is cylinder encased by a jacket, while the interior has agitation blades that rotate at high speed. A conduction heat transfer method is used where the steam or heating medium passes through the external jacket and internal agitation shaft to make contact with and dry the materials.
The mounted models include a vacuum type (FAD-V) and an atmospheric pressure type (FAD-A).
The vacuum type is comprised of parts such as a duster, condenser and vacuum pump (or ejector).
The atmospheric pressure type is comprised of parts such as a dust collector and exhaust fan, and in some cases a deodorizing device can be installed.
This model has excellent sanitary performance, and the interior parts can be removed for easy cleaning. (FAD-S series)

Interview with the Developer.Free Angle Dryer

Developer of Free Angle Dryer Kazuo Horiuchi
A dryer developed to turn the impossible into the possible
Dryer models include vertical types and horizontal types, but there are things that each type can and cannot do.
The angle of the free angle dryer can be freely changed, which enables it to perform drying that can only be performed by the vertical type, and also drying that can only be performed by the horizontal type.
This means it is the optimal dryer for users who need to dry a wide variety of material types.
This dryer is particularly suitable for users who need to perform various drying tests, such as for chemical products or cosmetics.
A vacuum can be applied to lower the boiling point and perform drying at a low temperature (about 60°C) to avoid high temperature damage.
A crushing mechanism can be installed inside the machine, enabling shochu lees fluid (which usually forms a ball shape and is difficult to dry) to be dried into granules.
The rotating vanes in the machine can be changed according to the material type, which makes maintenance easy and is convenient for drying small volumes of many different types of materials.
Various material types such as shochu lees and sweet potato have been tested in successful drying demonstrations.
Please ask to test this machine if you are having difficulty finding the optimal dryer for your material type.
We provide the optimal solutions for drying.

Features

  • 1. Combines the advantages of the vertical type (YVD) and the horizontal type (KVD).
  • 2. Compatible with many types of processed materials. In particular, suitable even for processed materials prone to clumping and highly viscous processed materials.
  • 3. Tilts to the left and right to agitate and mix the processed materials within the machine to efficiently obtain products with low unevenness.
  • 4. Easy to insert and extract the processed materials.
  • 5. Drying is highly efficient (high heat capacity coefficient) to enable drying in a short period of time.
  • 6. Operates with lower rotational power than the vertical type.

Example of Use

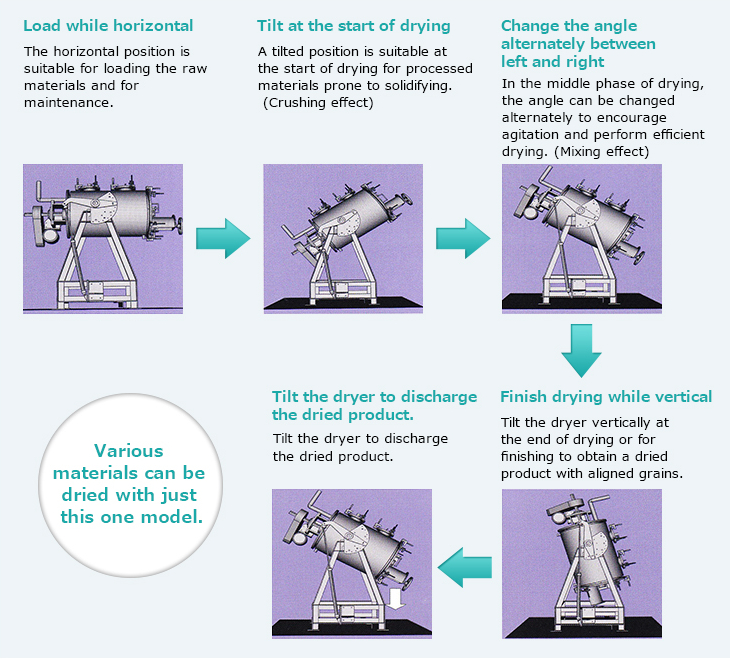

Load while horizontal.The horizontal position is suitable for loading the raw materials and for maintenance.Tilt at the start of drying.A tilted position is suitable at the start of drying for processed materials prone to solidifying. (Crushing effect) Change the angle alternately between left and right In the middle phase of drying, the angle can be changed  alternately to encourage agitation and perform efficient drying. (Mixing effect).Finish drying while vertical Tilt the dryer vertically at the end of drying or for finishing to obtain a dried product with aligned grains.Tilt for discharge Tilt the dryer to discharge the dried product.Various materials can be dried with just this one model.

Airflow/Internal structure

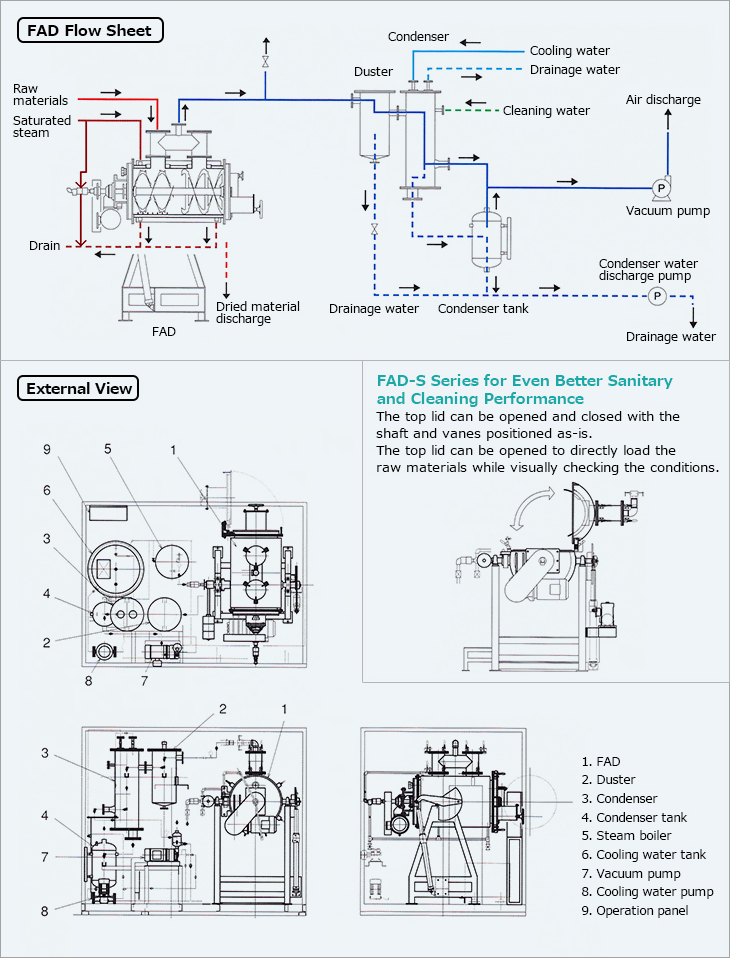

FAD Flow Sheet/External View

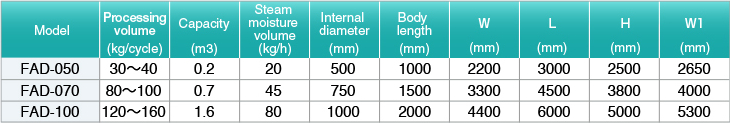

Models/Specifications

Tested Items

  • ■sake lees
  • ■tea leaf
  • ■tofu refuse

Examples of Possible Future Use

  • ■Cosmetics
  • ■Medicine
  • ■etc. A wide variety of drying.
  • ■研究所用
  • A test machine is available, so please feel free to use.
