Evaporation Concentrator

Evaporation Concentrator

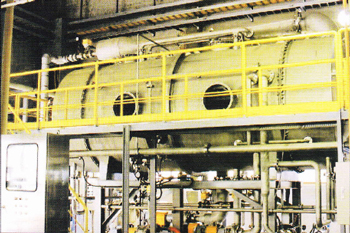

Evaporation Concentrator.A multiple-effect single vessel type that is compact and highly efficient.

In the evaporation concentrator, the inside of a single vessel is partitioned, and the steam evaporated from the raw liquid is recovered and reused by the ejector heat pump.
The use of a single vessel in the evaporation concentrator provides advantages such as low heat dissipation loss, low equipment costs, reduced installation area and easy maintenance due to horizontal installation.

Features

1. The inside of a single vessel is partitioned, and the steam evaporated from the raw liquid is recovered and reused by the ejector heat pump.
2. Loss heat dissipation loss due to use of a single vessel.
3. Low equipment costs due to use of a single vessel.
4. Reduced installation area due to use of a single vessel.
5. Easy maintenance due to horizontal installation.

Applications

YTE type: Triple-effect single vessel type + ejector heat pump
YDE type: Double-effect single vessel type + ejector heat pump, for high viscosity liquids
YSE type (compact standard): Evaporation capacity 1.0 t to 12 t/24 h

Models/Specifications

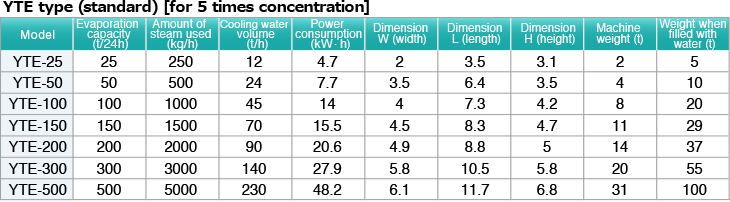

YTE type (standard) [for 5 times concentration]. Model. Evaporation capacity. Amount of steam used. Cooling water volume. Power consumption. Dimension W (width). Dimension L (length). Dimension H (height). Machine weight. Weight when filled with water.

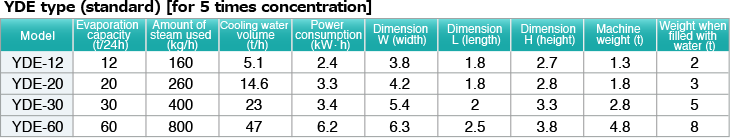

YDE type (standard) [for 5 times concentration]. Model. Evaporation capacity. Amount of steam used. Cooling water volume. Power consumption. Dimension W (width). Dimension L (length). Dimension H (height). Machine weight. Weight when filled with water.

The values above are approximate and may vary slightly according to conditions. Please check via testing.

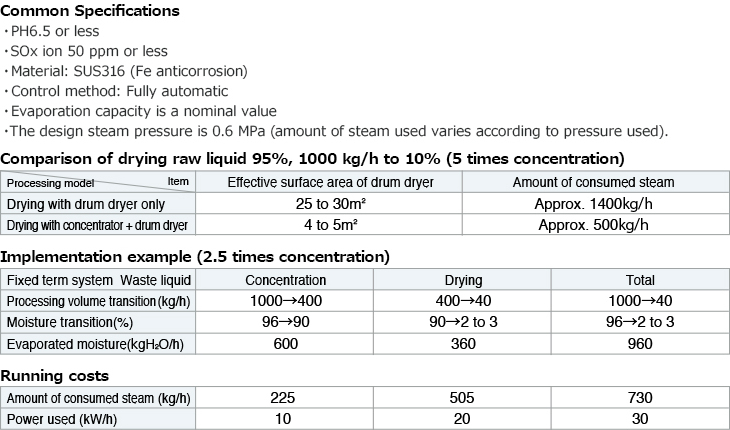

Common Specifications. PH6.5 or less. SOx ion 50 ppm or less. Material: SUS316 (Fe anticorrosion). Control method: Fully automatic. Evaporation capacity is a nominal value. The design steam pressure is 0.6 MPa (amount of steam used varies according to pressure used). Comparison of drying raw liquid 95%, 1000 kg/h to 10% (5 times concentration). Item	 Effective surface area of drum dryer. Amount of consumed steam. Processing model. Drying with drum dryer only. 25 to 30 m2. Approx. 1400 kg/h. Drying with concentrator + drum dryer	4 to 5 m2. Approx. 500 kg/h. Implementation example (2.5 times concentration). Fixed term system  Waste liquid. Concentration. Drying. Total. Processing volume transition (kg/h). Moisture transition. 2 to 3. 2 to 3. Evaporated moisture. Running costs. Amount of consumed steam (kg/h). Power used (kW/h).

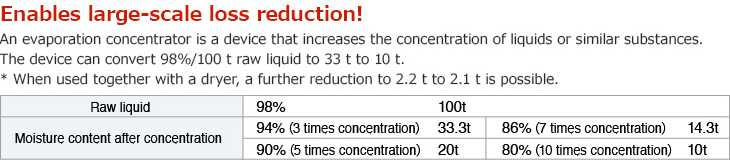

Enables large-scale loss reduction! An evaporation concentrator is a device that increases the concentration of liquids or similar substances. The device can convert 98%/100 t raw liquid to 33 t to 10 t. * When used together with a dryer, a further reduction to 2.2 t to 2.1 t is possible.

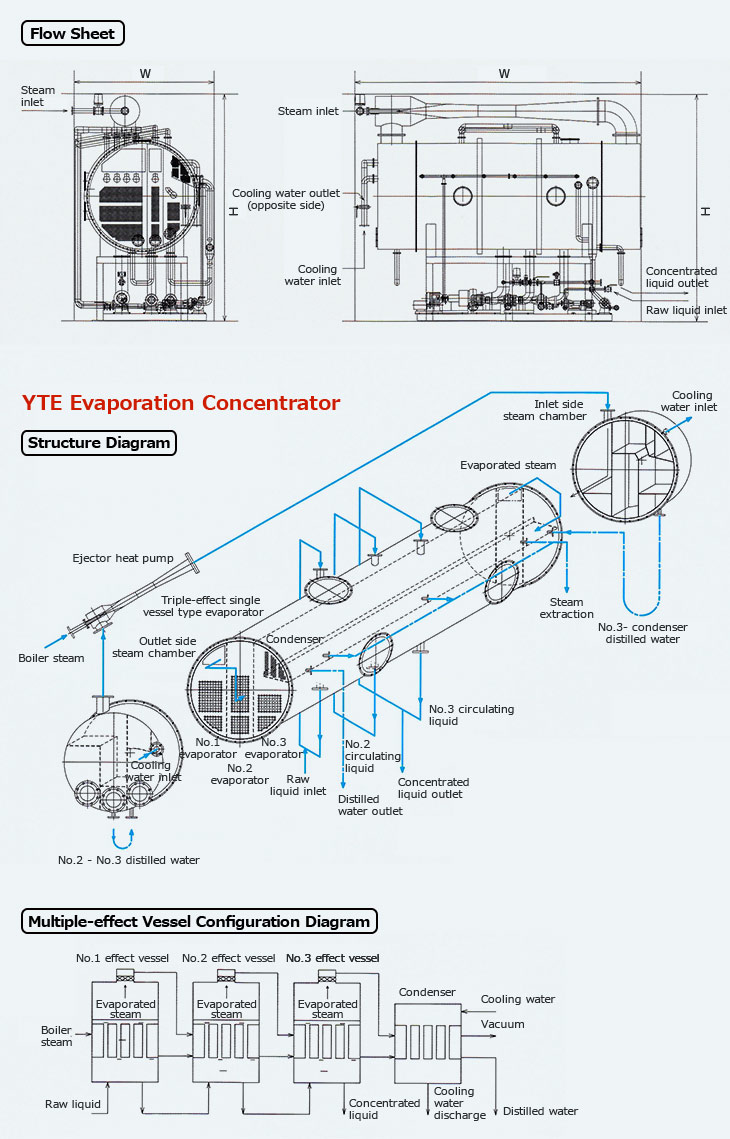

Flow Sheet/Structure Diagram/Configuration Diagram.

Flow Sheet. Steam inlet. Steam inlet. Cooling water outlet. (opposite side). Cooling water inlet. Concentrated liquid outlet. Raw liquid inlet.YTE Evaporation Concentrator. Structure Diagram. Cooling water outlet. Inlet side steam chamber. Evaporated steam. Ejector heat pump. Boiler steam. Triple-effect single vessel type evaporator. Outlet side steam chamber. Condenser. Steam extraction. No. 3 - condenser distilled water. Cooling water inlet. No. 1 evaporator. No. 2 evaporator. No. 3 evaporator. Raw liquid inlet. Distilled water outlet. No. 2 circulating liquid. No. 3 circulating liquid. Concentrated liquid outlet. No.2 - No.3 distilled water. Multiple-effect Vessel Configuration Diagram. No. 1 effect vessel. No. 2 effect vessel. No. 3 effect vessel. Condenser. Cooling water. Evaporated steam. Evaporated steam. Evaporated steam. Vacuum. Boiler steam. Raw liquid. Concentrated liquid. Cooling water discharge.Distilled water.

Product Images

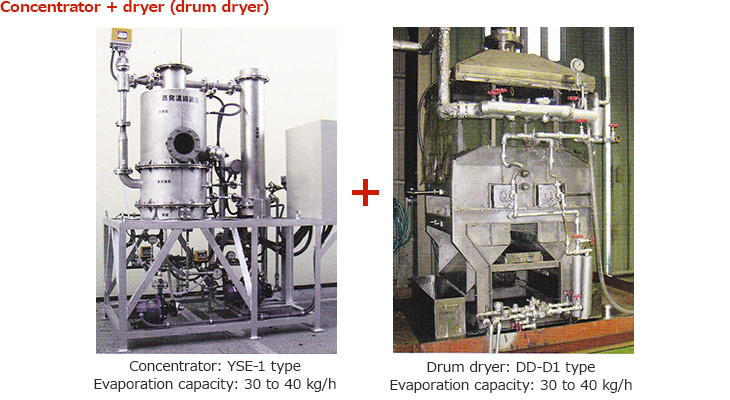

Concentrator + dryer (drum dryer). Concentrator: YSE-1 type. Evaporation capacity: 30 to 40 kg/h. Drum dryer: DD-D1 type. Evaporation capacity: 30 to 40 kg/h.
